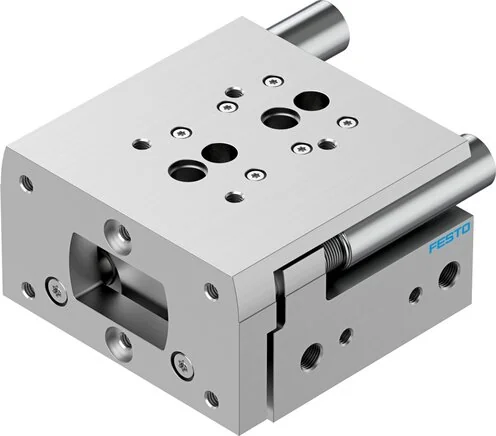

Festo - DGST-25-30-Y12A-8085191 - Mini Slide

SKU: festo-dgst-25-30-y12a-8085191

Browse all parts
Festo - DGST-25-30-Y12A-8085191 - Mini Slide

€956.21€817.27 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€956.21

Brand
Festo
Guide
Ball cage guide
Dampening
externe hydraulische Dämpfung
Stroke (mm)
30
Material Note
RoHs compliant
Repeatability
<= 0,02 mm
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Material Guide
High-alloyed steel
Piston Ø (mm)
25
Seals Material
HNBR
Moving Mass (g)
867
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
0,8
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
1280
Max. Force Fz (N)
1280
Position Detection
For proximity switch
Construction Set Up
Schlitten
Max. Torque Mx (Nm)
14
Max. Torque My (Nm)
14
Max. Torque Mz (Nm)
14
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Dampening Length (mm)
10
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0.1 to 0.8
Ambient Temperature (°C)
60
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
6
Alignable End Position Range / Length Rear (mm)
20,2
Alignable End Position Range / Length Front (mm)
20,2
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
495
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
589
EAN
4052568450793
Manufacturer
Festo
