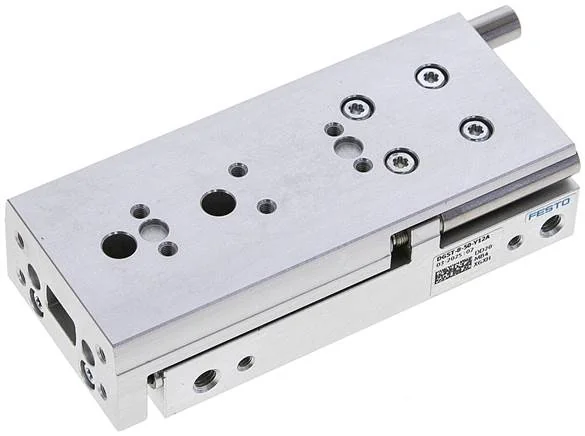

Festo - DGST-8-50-Y12A-8085164 - Mini Slide

SKU: festo-dgst-8-50-y12a-8085164

Browse all parts
Festo - DGST-8-50-Y12A-8085164 - Mini Slide

€769.13€657.38 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€769.13

Brand
Festo
Guide
ball guide
Dampening
externe hydraulische Dämpfung
Stroke (mm)
50
Material Note
RoHs compliant
Repeatability
<= 0,02 mm
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Material Guide
High-alloyed steel
Piston Ø (mm)
8
Seals Material
HNBR
Moving Mass (g)
129,8
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
0,8
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
350
Max. Force Fz (N)
350
Position Detection
For proximity switch
Construction Set Up
Schlitten
Max. Torque My (Nm)
3
Max. Torque Mz (Nm)
3
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Dampening Length (mm)
4
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
60
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,4
Alignable End Position Range / Length Rear (mm)
15,7
Alignable End Position Range / Length Front (mm)
17,6
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
45
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
60
EAN
4052568450526
Manufacturer
Festo
