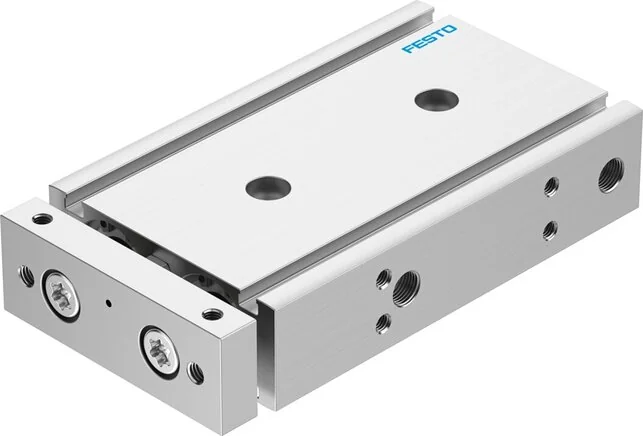

Festo - DGTZ-GF-25-60-P-A-8100642 - Double Piston Cylinder

SKU: festo-dgtz-gf-25-60-p-a-8100642

Browse all parts
Festo - DGTZ-GF-25-60-P-A-8100642 - Double Piston Cylinder

€491.18€419.81 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€491.18

Brand
Festo
Guide
sliding guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
60
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Piston Ø (mm)
25
Seals Material
NBR
Moving Mass (g)
881
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Guide
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Principle Of Operation
double acting
Operating Pressure (MPa)
0.1 to 0.8
Ambient Temperature (°C)
80
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,3
Alignable End Position range/Length (mm)
10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
454
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
590
EAN
4052568471026
Manufacturer
Festo
