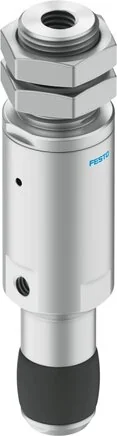

Festo - DHEB-10-E-D-E-L-1320766 - Bellows Gripper

SKU: festo-dheb-10-e-d-e-l-1320766

Browse all parts
Festo - DHEB-10-E-D-E-L-1320766 - Bellows Gripper

€210.72€180.10 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€210.72

Brand
Festo
Size
10
Guide
Base guide
Material Note
RoHs compliant
Fastening Type
With locking nut
Bellows Material
EPDM
Gripper Function
Adaptiv
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
without
Bellows Stroke (mm)
4,0
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
M5
Reset Pressure (bar)
1
Installation Position
arbitrary
Guideline Payload (kg)
0,10
LABS (PWIS) Conformity
VDMA24364-Zone III
Principle Of Operation
closed
Operating Pressure (bar)
5 to 8
Ambient Temperature (°C)
5 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Diameter To Be Gripped (mm)
14,0
Min. Diameter To Be Gripped (mm)
10,5
Max. Working Frequency Gripper (Hz)
4
Centre Exchange Interval For Bellows
0,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
40
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
20
EAN
4052568229863
Manufacturer
Festo
