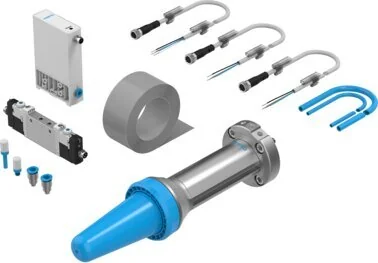

Festo - DHEF-20-A-RA50-8210811 - Robot Kit Adaptive Form Gripper

SKU: festo-dhef-20-a-ra50-8210811

Browse all parts
Festo - DHEF-20-A-RA50-8210811 - Robot Kit Adaptive Form Gripper

€3,394.32€2,901.13 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,394.32

Brand
Festo
Size
20
Guide
Base guide
Stroke (mm)
66
Cap Material
VMQ (Silicone)
Drive System
pneumatic
Mass Inertia
1,29
Material Note
RoHs compliant
Supply Volume
3x Verbindungsleitung
Fastening Type
nach ISO 9409
Moving Mass (g)
60
Gripper Function
Adaptiv
Housing Material
Anodised aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Pick-up Tolerance
± 4 mm
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Extension Time (ms)
270
Placement Tolerance
± 2 mm
Pneumatic Connection
M5
Retraction Time (ms)
290
Installation Position
arbitrary
Inverting Cap Version
Standard
Guideline Payload (kg)
1
LABS (PWIS) Conformity
VDMA24364-Zone III
Locking Cover Material
PA
Principle Of Operation
double acting
Ambient Temperature (°C)
0 to 60
Max. Speed During Gripping
120
Burst Pressure Of Cap (bar)
0,03
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Pressure Of Cap (bar)
0,007 to 0,01
Max. Diameter To Be Gripped (mm)
38
Min. Diameter To Be Gripped (mm)
12
Max. Speed Without Gripped Object
290
Operating Pressure Actuator (bar)
0.1 to 0.8
Max. Working Frequency Gripper (Hz)
1
Note On Operating And Control Medium
Oiled operation not possible
Impact Energy At The End Positions (J)
0,1
Contact Force On The Gripping Object (N)
20
Recommended Flow Rate For Pressure Regulator
10
Dynamic Lateral Force With Max. Projection (N)
2,3
Static Holding Force Parallel To The Gripper Axis (N)
26
Static Holding Force Perpendicular To The Gripper Axis (N)
45
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
189
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
158
EAN
4052568785055
Manufacturer
Festo
