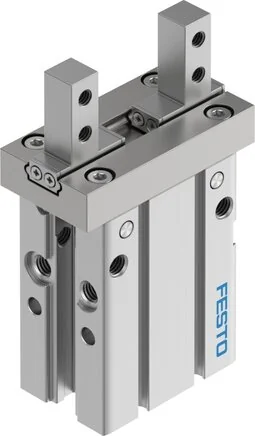

Festo - DHPC-20-A-NO-S-1-8116824 - Parallel Gripper

SKU: festo-dhpc-20-a-no-s-1-8116824

Browse all parts
Festo - DHPC-20-A-NO-S-1-8116824 - Parallel Gripper

€398.65€340.73 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€398.65

Brand
Festo
Size
20
Guide
Kugelführung
Drive System
pneumatic
Mass Inertia
0,515
Material Note
RoHs compliant
Fastening Type
With Female thread and dowel pin
Gripper Function
Parallel
Housing Material
Anodised aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
M5
Gripper Jaws Material
High-alloyed stainless steels
Gripping Force Safety
When opening
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
open
Operating Pressure (MPa)
0,25 to 0,8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
-10 to 60
Repeatability Grippers (mm)
0,02
Stroke Per Gripper Jaw (mm)
5
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Working Frequency Gripper (Hz)
3
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
101,3
Max. Mass Per External Griper Finger (g)
110
Max. Torque On Gripper Jaws Mx Static (Nm)
1,43
Max. Torque On Gripper Jaws My Static (Nm)
1,30
Max. Torque On Gripper Jaws Mz Static (Nm)
1,30
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
29
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
75
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
139,4
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
69,7
EAN
4052568563998
Manufacturer
Festo
