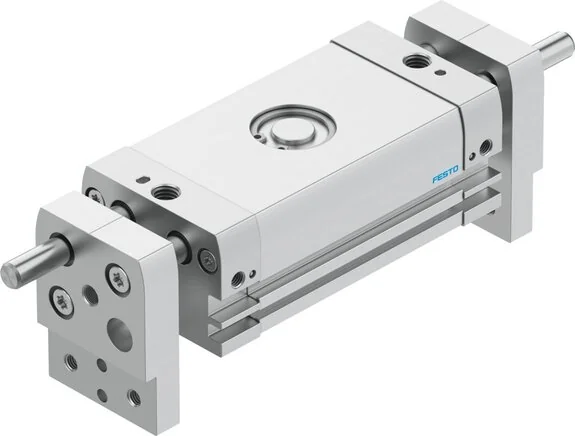

Festo - DHPL-16-80-P-A-8112218 - Parallel Gripper

SKU: festo-dhpl-16-80-p-a-8112218

Browse all parts
Festo - DHPL-16-80-P-A-8112218 - Parallel Gripper

€453.47€387.58 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€453.47

Brand
Festo
Size
16
Guide
sliding guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Drive System
pneumatic
Mass Inertia
9,7 to 12,6
Material Note
RoHs compliant
Cover Material
Aluminium-Knetlegierung, eloxiert
Fastening Type
With throughway bores
O-ring Material
NBR
Screws Material
Zinc-plated steel
Gripper Function
Parallel
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Total Stroke (mm)
80
Cover Cap Material
Aluminium-Knetlegierung, eloxiert
End Plate Material
Aluminium-Knetlegierung, eloxiert
Gear Rack Material
High-alloyed stainless steels
Position Detection
For proximity switch
Construction Set Up
Toothed rack/pinion
Gear Wheel Material
sintered bronze
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP54
Maintenance Interval
Lifetime lubrication
Pneumatic Connection
M5
Gripper Jaws Material
Aluminium wrought alloy, anodised
Gripping Force Safety
without
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material - Piston Seal
TPE-U(PU)
Principle Of Operation
double acting
Operating Pressure (MPa)
0,15 to 0,8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
-10 to 60
Repeatability Grippers (mm)
0,03
Stroke Per Gripper Jaw (mm)
40
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,072
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Working Frequency Gripper (Hz)
1,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
240
Max. Mass Per External Griper Finger (g)
93
Max. Torque On Gripper Jaws Mx Static (Nm)
3,5
Max. Torque On Gripper Jaws My Static (Nm)
3,5
Max. Torque On Gripper Jaws Mz Static (Nm)
3,5
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,15
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
221
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
157
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
142
Total Gripping Force, Opening, 0.6MPa (6bar, 87 psi) (N)
190
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
71
Gripper Force Per Gripper Jaw, Opening, 0.6 MPa (6 bar, 87 psi) (N)
95
EAN
4052568573171
Manufacturer
Festo
