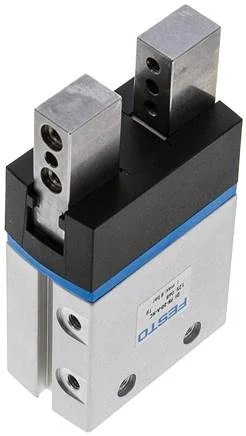

Festo - DHPS-20-A-NC-1254048 - Parallel Gripper

SKU: festo-dhps-20-a-nc-1254048

Browse all parts
Festo - DHPS-20-A-NC-1254048 - Parallel Gripper

€870.11€743.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€870.11

Brand
Festo
Size
20
Guide
sliding guide
Drive System
pneumatic
Mass Inertia
1,494
Material Note
RoHs compliant
Fastening Type
With Throughway bore and centring sleeve
Gripper Function
Parallel
Housing Material
Aluminium wrought alloy, hard anodised
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
PA
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
M5
Gripper Jaws Material
High-alloyed stainless steels
Gripping Force Safety
When closing
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,4 to 0,8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,02
Stroke Per Gripper Jaw (mm)
6,5
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,02
Corrosion Resistance Class KBK
1 - low corrosion stress
Lubrication Interval Guide Elements
10
Max. Working Frequency Gripper (Hz)
3
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
250
Max. Mass Per External Griper Finger (g)
250
Max. Torque On Gripper Jaws Mx Static (Nm)
14,0
Max. Torque On Gripper Jaws My Static (Nm)
14,0
Max. Torque On Gripper Jaws Mz Static (Nm)
14,0
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,5
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
62
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
72
EAN
4052568229214
Manufacturer
Festo
