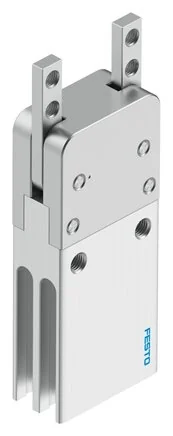

Festo - DHRC-6-A-8125285 - Radial Gripper

SKU: festo-dhrc-6-a-8125285

Browse all parts
Festo - DHRC-6-A-8125285 - Radial Gripper

€431.89€369.14 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€431.89

Brand
Festo
Size
6
Drive System
pneumatic
Mass Inertia
0,01
Material Note
RoHs compliant
Fastening Type
Direktbefestigung über Gewinde
Gripper Function
radial
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
Aluminium-Knetlegierung, eloxiert
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
M3
Gripper Jaws Material
High-alloyed steel
Gripping Force Safety
without
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Max. Opening Angle (°)
180
Operating Pressure (MPa)
0,25 to 0,8
Ambient Temperature (°C)
-10 to 60
Repeatability Grippers (mm)
0,1
Max. Exchange Precision (mm)
0,2
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Working Frequency Gripper (Hz)
3
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
12
Max. Torque On Gripper Jaws Mx Static (Nm)
0,3
Max. Torque On Gripper Jaws My Static (Nm)
0,3
Max. Torque On Gripper Jaws Mz Static (Nm)
0,3
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
19
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
10
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Total Gripper Torque, Closing, 0.6 MPa (6 bar, 87 psi) (Ncm)
4,8
Total Gripping Torque At 0.6 MPa (6 bar, 87 psi), Opening (Ncm)
6,7
EAN
4052568567828
Manufacturer
Festo
