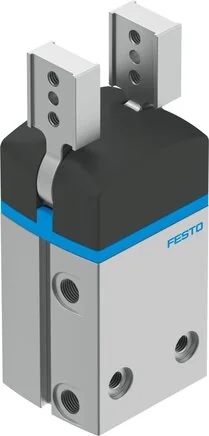

Festo - DHRS-40-A-NC-1310167 - Radial Gripper

SKU: festo-dhrs-40-a-nc-1310167

Browse all parts
Festo - DHRS-40-A-NC-1310167 - Radial Gripper

€1,378.30€1,178.03 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,378.30

Brand
Festo
Size
40
Mass Inertia
4,24
Material Note
RoHs compliant
Fastening Type
With Throughway bore and centring sleeve
Gripper Function
radial
Housing Material
Aluminium wrought alloy, hard anodised
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
PA
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
G1/8
Gripper Jaws Material
High-alloyed steel
Gripping Force Safety
When closing
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Max. Opening Angle (°)
180
Operating Pressure (bar)
4 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,1
Max. Exchange Precision (mm)
0,2
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Working Frequency Gripper (Hz)
2
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
200
Max. Torque On Gripper Jaws Mx Static (Nm)
14,0
Max. Torque On Gripper Jaws My Static (Nm)
14,0
Max. Torque On Gripper Jaws Mz Static (Nm)
14,0
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
110
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
151
EAN
4052568229641
Manufacturer
Festo
