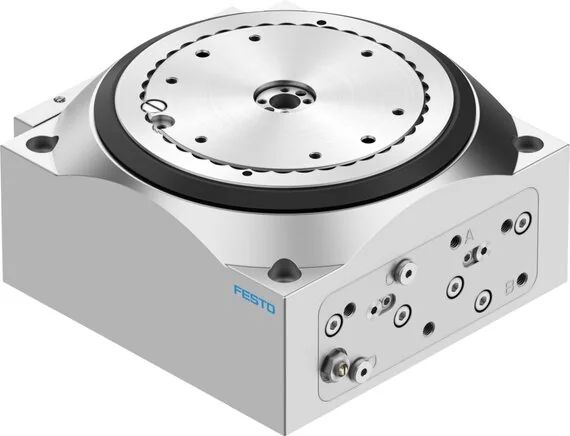

Festo - DHTG-90-24-A-548087 - Rotary Index Table

SKU: festo-dhtg-90-24-a-548087

Browse all parts
Festo - DHTG-90-24-A-548087 - Rotary Index Table

€3,734.13€3,191.56 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,734.13

Brand
Festo
Size
90
Dampening
Stossdämpfer, harte Kennlinie, justierbar
Partition
24
Mass Inertia
300
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With Throughway bore and centring sleeve
Plate Material
Zinc plated steel
Seals Material
TPE-U(PU)
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Stoppers Material
Zinc plated steel
Position Detection
For inductive sensors
Construction Set Up
Force controlled movement cycle
Plan Run Plate (mm)
0,02
Protection Category
IP54
Pneumatic Connection
female thread M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Parallelity Plate (mm)
0,04
Principle Of Operation
double acting
Concentricity Plate (mm)
0,02
Operating Pressure (MPa)
0,3 to 0,8
Ambient Temperature (°C)
5 to 60
Bearing Temperature (°C)
-20 to 80
Max. Axial Force Static (N)
2.000
Max. Radial Force Static (N)
5.000
Sound Pressure Level (dB(A))
70
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Tilting Torque Static (Nm)
150
Max. Tangential Torque Static (Nm)
150
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Repeatability Of The Swivel Angle (°)
0,03
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
4,4
EAN
4052568189754
Manufacturer
Festo
