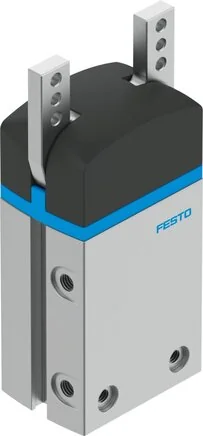

Festo - DHWS-25-A-NC-1310181 - Angular Gripper

SKU: festo-dhws-25-a-nc-1310181

Browse all parts
Festo - DHWS-25-A-NC-1310181 - Angular Gripper

€660.55€564.57 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€660.55

Brand
Festo
Size
25
Mass Inertia
0,64
Material Note
RoHs compliant
Fastening Type
With Throughway bore and centring sleeve
Gripper Function
elbow
Housing Material
harteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
PA
Position Detection
For proximity switch
Construction Set Up
lever
Pneumatic Connection
M5
Gripper Jaws Material
High-alloyed steel
Gripping Force Safety
When closing
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Max. Opening Angle (°)
40
Operating Pressure (bar)
4 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,04
Max. Exchange Precision (mm)
0,2
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Working Frequency Gripper (Hz)
3
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
90
Max. Torque On Gripper Jaws Mx Static (Nm)
3,6
Max. Torque On Gripper Jaws My Static (Nm)
3,6
Max. Torque On Gripper Jaws Mz Static (Nm)
3,6
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
59
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
106
EAN
4052568229696
Manufacturer
Festo
