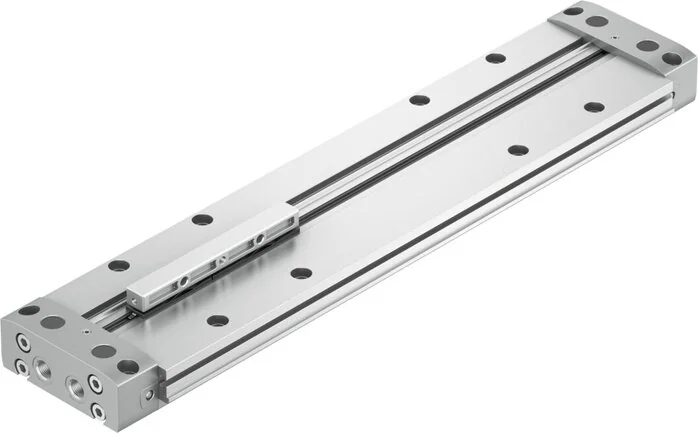

Festo - DLGF-G-40-600-PPSA-5074744 - Linear Drive

SKU: festo-dlgf-g-40-600-ppsa-5074744

Browse all parts
Festo - DLGF-G-40-600-PPSA-5074744 - Linear Drive

€690.71€590.35 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€690.71

Brand
Festo
Guide
Base guide
Dampening
selbsteinstellende pneumatische Endlagendämpfung
Stroke (mm)
600
Material Note
kupferfrei
Cover Material
Aluminium-Guss, beschichtet
Fastening Type
With Accessories
Piston Ø (mm)
40
Seals Material
TPE-U(PU)
Moving Mass (g)
450
Housing Material
Anodised aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Carrier Principle
Form-fitting (slot)
Max. Force Fy (N)
0
Position Detection
For proximity switch
Max. Torque My (Nm)
37,6
Pneumatic Connection
G1/4
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
60
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Force -Fz (Towards Drive) (N)
662
Max. Force +Fz (Away From Drive) (N)
456
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
754
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
754
EAN
4052568419455
Manufacturer
Festo
