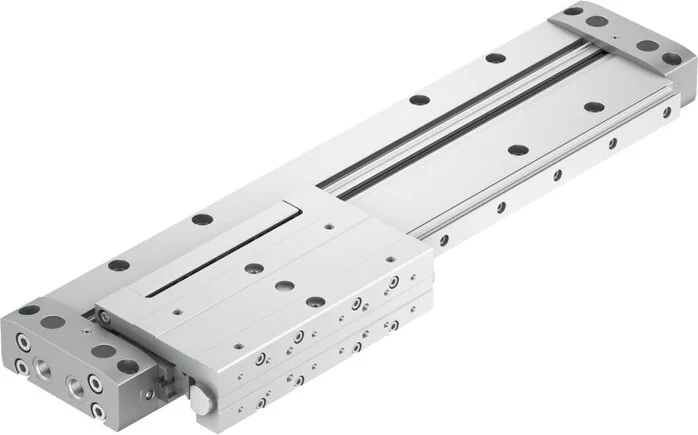

Festo - DLGF-KF-25-150-PPSA-5072371 - Linear Drive

SKU: festo-dlgf-kf-25-150-ppsa-5072371

Browse all parts
Festo - DLGF-KF-25-150-PPSA-5072371 - Linear Drive

€858.80€734.02 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€858.80

Brand
Festo
Guide
ball guide
Dampening
selbsteinstellende pneumatische Endlagendämpfung
Stroke (mm)
150
Material Note
kupferfrei
Cover Material
Aluminium-Guss, beschichtet
Fastening Type
With Accessories
Piston Ø (mm)
25
Seals Material
TPE-U(PU)
Moving Mass (g)
760
Housing Material
Anodised aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Carrier Principle
Form-fitting (slot)
Max. Force Fy (N)
1000
Position Detection
For proximity switch
Max. Torque My (Nm)
30
Max. Torque Mz (Nm)
30
Pneumatic Connection
G1/8
Dampening Length (mm)
9
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
60
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Force -Fz (Towards Drive) (N)
1.200
Max. Force +Fz (Away From Drive) (N)
700
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
295
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
295
EAN
4052568419332
Manufacturer
Festo
