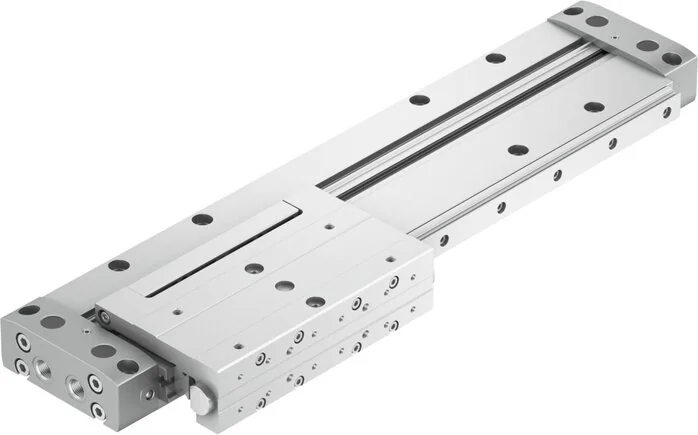

Festo - DLGF-KF-32-600-PPSA-5074810 - Linear Drive

SKU: festo-dlgf-kf-32-600-ppsa-5074810

Browse all parts
Festo - DLGF-KF-32-600-PPSA-5074810 - Linear Drive

€1,307.25€1,117.31 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,307.25

Brand
Festo
Guide
ball guide
Dampening
selbsteinstellende pneumatische Endlagendämpfung
Stroke (mm)
600
Material Note
kupferfrei
Cover Material
Aluminium-Guss, beschichtet
Fastening Type
With Accessories
Piston Ø (mm)
32
Seals Material
TPE-U(PU)
Moving Mass (g)
1290
Housing Material
Anodised aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Carrier Principle
Form-fitting (slot)
Max. Force Fy (N)
1300
Position Detection
For proximity switch
Max. Torque Mx (Nm)
30
Max. Torque My (Nm)
50
Max. Torque Mz (Nm)
50
Pneumatic Connection
G1/8
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
60
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Force -Fz (Towards Drive) (N)
1.600
Max. Force +Fz (Away From Drive) (N)
950
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
483
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
483
EAN
4052568419608
Manufacturer
Festo
