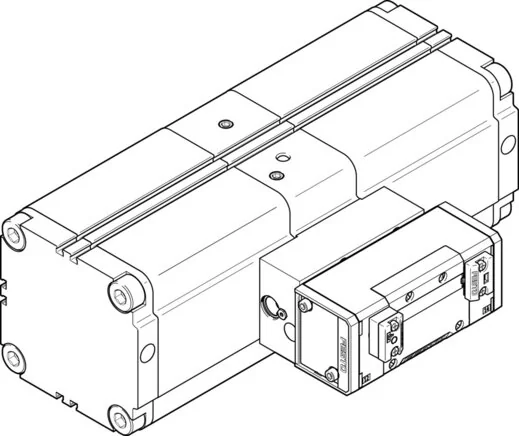

Festo - DPA-100-D-549398 - Pressure Booster

SKU: festo-dpa-100-d-549398

Festo - DPA-100-D-549398 - Pressure Booster

€2,546.00€2,176.07 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,546.00

Brand
Festo
Material Note
RoHs compliant
Fastening Type
with female thread
Piston Ø (mm)
100
Operating Medium
Compressed air to ISO 8573-1:2010 [7:3:4]
Pressure Display
G1/8 prepared
Construction Set Up
Double piston pressure transducer
Installation Position
arbitrary
Input Pressure 1 (bar)
2 to 8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1/2
Output Pressure 2 (MPa)
0,4 to 1,6
Operating Pressure (MPa)
0,25 to 0,8
Ambient Temperature (°C)
5 to 60
Bearing Temperature (°C)
5 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pressure Regulation Range (MPa)
0,5 to 1,6
Note On Operating And Control Medium
Oiled operation not possible
EAN
4052568190477
Manufacturer
Festo
