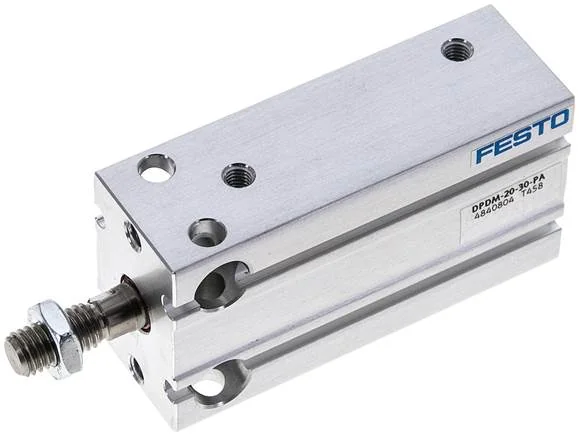

Festo - DPDM-20-30-PA-4840804 - Compact Cylinder

SKU: festo-dpdm-20-30-pa-4840804

Browse all parts
Festo - DPDM-20-30-PA-4840804 - Compact Cylinder

€95.61€81.72 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€95.61

Brand
Festo
Variants
One-sided piston rod
Dampening
P: Elastic silencer rings / plates double-sided
Stroke (mm)
30
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores, With female thread, Selectively:
Seals Material
TPE-U(PU)
Housing Material
Aluminium wrought alloy, anodised
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Piston, piston rod, profile tube
Material Information
RoHs compliant
High-alloyed stainless steels
Piston Diameter (mm)
20
Pneumatic Connection
M5
Installation Position
arbitrary
Principle Of Operation
double acting
Operating Pressure (bar)
1 to 8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
34,5
Theoretical Force At 6 bar (N)
188
Weight Supplement Per 10 mm Stroke (g)
22,0
Theoretical Force At 6 bar, Return Flow (N)
158
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568293352
Manufacturer
Festo
