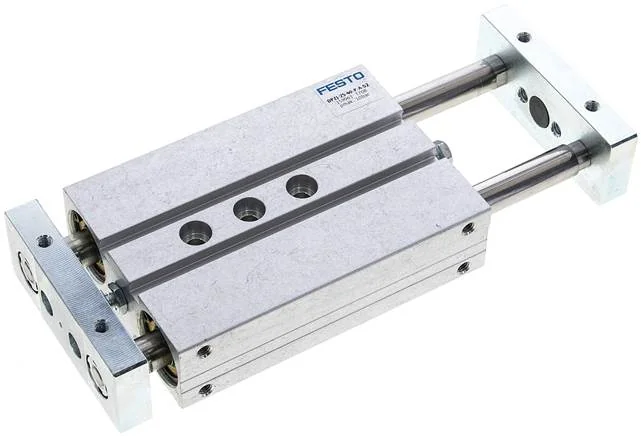

Festo - DPZJ-25-40-P-A-S2-159961 - Double Piston Cylinder

SKU: festo-dpzj-25-40-p-a-s2-159961

Browse all parts
Festo - DPZJ-25-40-P-A-S2-159961 - Double Piston Cylinder

€1,044.65€892.86 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,044.65

Brand
Festo
Guide
sliding guide
Variants
continuous piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
40
Cover Material
Aluminium wrought alloy
Piston Ø (mm)
25
Seals Material
NBR
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
1
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Guide
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 80
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,3
Alignable End Position range/Length (mm)
10
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
452
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
452
EAN
4052568127916
Manufacturer
Festo
