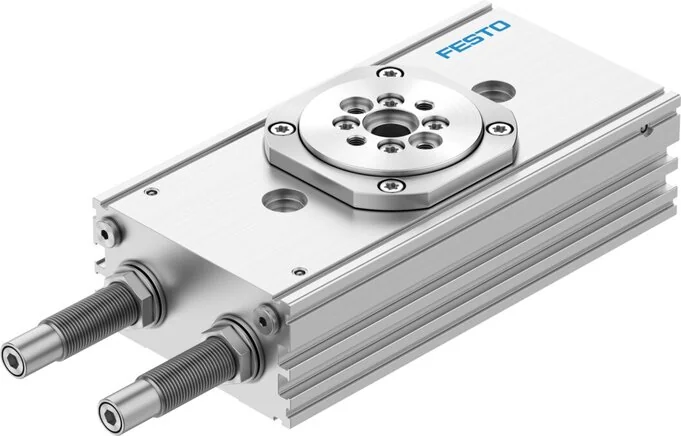

Festo - DRRS-25-180-FH-Y9A-8163614 - Swivel Drive

SKU: festo-drrs-25-180-fh-y9a-8163614

Browse all parts
Festo - DRRS-25-180-FH-Y9A-8163614 - Swivel Drive

€873.45€746.54 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€873.45

Brand
Festo
Size
25
Dampening
interne hydraulische Dämpfung normal
Material Note
RoHs compliant
Fastening Type
with female thread
Seals Material
TPE-U(PU)
Pinion Material
Quenched and tempered steel
Housing Material
Anodized aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Swivel Angle (°)
180
Position Detection
For proximity switch
Repeatability (°)
0,07
Construction Set Up
Toothed rack/pinion
Plan Run Plate (mm)
0,07
Dampening Angle (°)
40,8
Drive Shaft Material
Quenched and tempered steel
Pneumatic Connection
M5
Flange Shaft Material
Aluminium wrought alloy
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Swivel Angle (°)
200
Min. Swivel Angle (°)
80
Principle Of Operation
double acting
Max. Bending Moment (Nm)
10
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
60
Bearing Temperature (°C)
60
Max. Axial Load Static (N)
450
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Mass Moment Of Inertia
0,06
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Setting Range Of Swivel Angle For Each End Position
+10 /-100 deg
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 9 nach ISO 14644-1
EAN
4052568678180
Manufacturer
Festo
