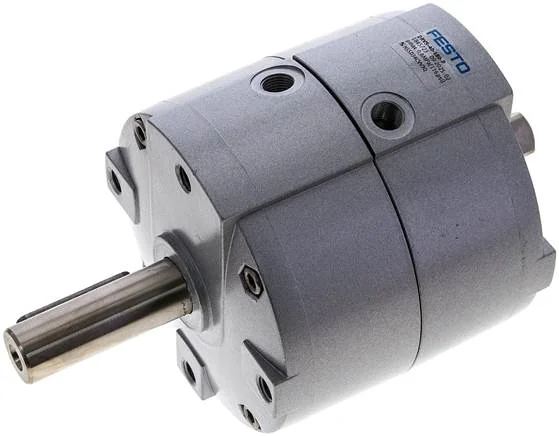

Festo - DRVS-40-180-P-1845723 - Swivel Drive

SKU: festo-drvs-40-180-p-1845723

Browse all parts
Festo - DRVS-40-180-P-1845723 - Swivel Drive

€402.28€343.83 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€402.28

Brand
Festo
Size
40
Variants
Tap shaft
Dampening
elastische Dämpfungsringe/-platten beidseitig
Material Note
RoHs compliant
Fastening Type
with female thread
Seals Material
TPE-U(PU)
Housing Material
Aluminium-Druckguss, lackiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Swivel Angle (°)
0 to 180
Position Detection
For proximity switch
Repeatability (°)
1
Construction Set Up
Rotary vane
Dampening Angle (°)
0,5
Drive Shaft Material
Nickel-plated steel
Max. Axial Force (N)
120
Pneumatic Connection
G1/8
Installation Position
arbitrary
Max. Impact Force (N)
650
Max. Radial Force (N)
350
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
60
Permissible Stop Radius (mm)
40
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Mass Moment Of Inertia
0,035
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
20
Max. Swivel Frequency At 0.6 MPa (6 bar, 87 psi) (Hz)
3
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
EAN
4052568264284
Manufacturer
Festo
