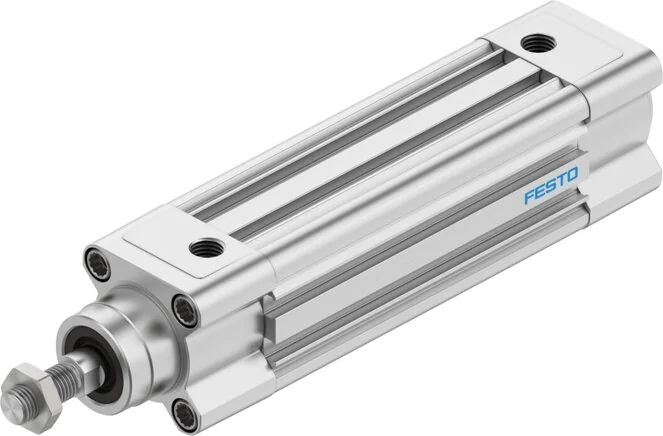

Festo - DSBC-32-80-D3-PPSA-N3-3659381 - Standard Cylinder

SKU: festo-dsbc-32-80-d3-ppsa-n3-3659381

Browse all parts
Festo - DSBC-32-80-D3-PPSA-N3-3659381 - Standard Cylinder

€201.90€172.56 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€201.90

Brand
Festo
Variants
One-sided piston rod
Dampening
selbsteinstellende pneumatische Endlagendämpfung
Stroke (mm)
80
Nut Material
Zinc-plated steel
Material Note
RoHs compliant
Cover Material
Aluminium-Druckguss, beschichtet
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
32
Moving Mass (g)
182
Piston Material
Aluminium wrought alloy
Bearing Material
Metall-Polymer-Verbund
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M10x1,25
Position Detection
For proximity switch
Rod Wiper Material
TPE-E
Construction Set Up
Profilrohr
Piston Rod Material
High-alloyed steel
Buffer Seal Material
TPE-U(PU)
Complies To Standard
ISO 15552
Pneumatic Connection
G1/8
Dampening Length (mm)
17
Installation Position
arbitrary
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material - Piston Seal
TPE-U(PU)
Material Collar Screws
Zinc plated steel
Principle Of Operation
double acting
Operating Pressure (MPa)
0,08 to 1,2
Ambient Temperature (°C)
-20 to 80
Material Piston Rod Wiper
TPE-U(PU)
Material Of Cushioning Boss
POM
Base Weight At 0 mm Stroke (g)
480
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
110
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,4
Weight Supplement Per 10 mm Stroke (g)
31
Supplement Moved Mass Per 10 mm Stroke (g)
9
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
415
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
483
EAN
4052568272692
Manufacturer
Festo
