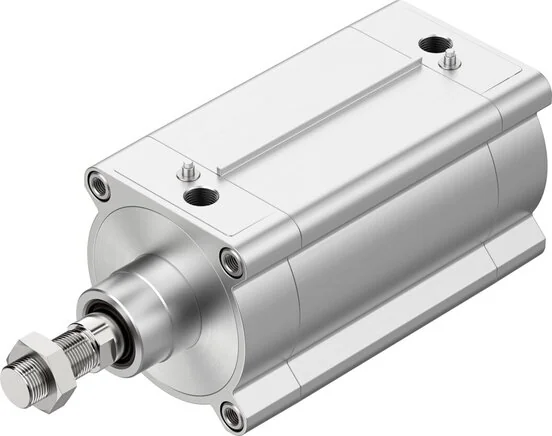

Festo - DSBF-C-125-160-PPVA-N3-R-1785018 - Standard Cylinder

SKU: festo-dsbf-c-125-160-ppva-n3-r-1785018

Browse all parts
Festo - DSBF-C-125-160-PPVA-N3-R-1785018 - Standard Cylinder

€1,085.00€927.35 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,085.00

Brand
Festo
Dampening
pneumatische Dämpfung beidseitig einstellbar
Stroke (mm)
160
Nut Material
High-alloyed stainless steels
Material Note
RoHs compliant
Cover Material
Aluminium-Druckguss, beschichtet
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
125
Moving Mass (g)
3253
Piston Material
Aluminium wrought alloy
Bearing Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M27x2
Position Detection
For proximity switch
Construction Set Up
Profilrohr
Piston Rod Material
High-alloyed stainless steels
Buffer Seal Material
TPE-U(PU)
Complies To Standard
ISO 15552
Pneumatic Connection
G1/2
Dampening Length (mm)
45
Installation Position
arbitrary
Cylinder Tube Material
Aluminium-Knetlegierung, eloxiert
LABS (PWIS) Conformity
VDMA24364-B2-L
Material - Piston Seal
TPE-U(PU)
Material Collar Screws
Zinc plated steel
Principle Of Operation
double acting
Operating Pressure (MPa)
0,02 to 1
Ambient Temperature (°C)
-20 to 80
Material Piston Rod Wiper
TPE-U(PU)
Material Of Cushioning Boss
POM
Base Weight At 0 mm Stroke (g)
6928
Corrosion Resistance Class KBK
3 - severe corrosion stress
Moving Mass At 0 mm Stroke (g)
2245
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
3,3
Weight Supplement Per 10 mm Stroke (g)
163
Supplement Moved Mass Per 10 mm Stroke (g)
63
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
6881
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
7363
EAN
4052568248284
Manufacturer
Festo
