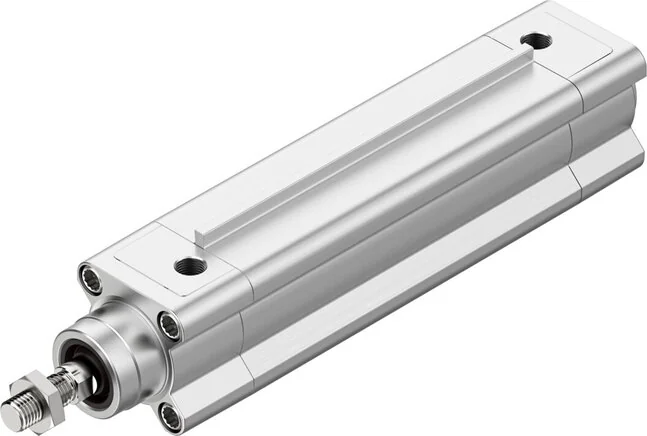

Festo - DSBF-C-40-125-PPSA-N3-R-1779436 - Standard Cylinder

SKU: festo-dsbf-c-40-125-ppsa-n3-r-1779436

Browse all parts
Festo - DSBF-C-40-125-PPSA-N3-R-1779436 - Standard Cylinder

€260.77€222.88 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€260.77

Brand
Festo
Dampening
selbsteinstellende pneumatische Endlagendämpfung
Stroke (mm)
125
Nut Material
High-alloyed stainless steels
Material Note
RoHs compliant
Cover Material
Aluminium-Druckguss, beschichtet
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
40
Moving Mass (g)
404
Piston Material
Aluminium wrought alloy
Bearing Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M12x1,25
Position Detection
For proximity switch
Construction Set Up
Profilrohr
Piston Rod Material
High-alloyed stainless steels
Buffer Seal Material
TPE-U(PU)
Complies To Standard
ISO 15552
Pneumatic Connection
G1/4
Dampening Length (mm)
19
Installation Position
arbitrary
Cylinder Tube Material
Aluminium-Knetlegierung, eloxiert
LABS (PWIS) Conformity
VDMA24364-B2-L
Material - Piston Seal
TPE-U(PU)
Material Collar Screws
Zinc plated steel
Principle Of Operation
double acting
Operating Pressure (MPa)
0,06 to 1,2
Ambient Temperature (°C)
80
Material Piston Rod Wiper
TPE-U(PU)
Material Of Cushioning Boss
POM
Base Weight At 0 mm Stroke (g)
778
Corrosion Resistance Class KBK
3 - severe corrosion stress
Moving Mass At 0 mm Stroke (g)
204
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,7
Weight Supplement Per 10 mm Stroke (g)
40
Supplement Moved Mass Per 10 mm Stroke (g)
16
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
633
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
754
EAN
4052568247539
Manufacturer
Festo
