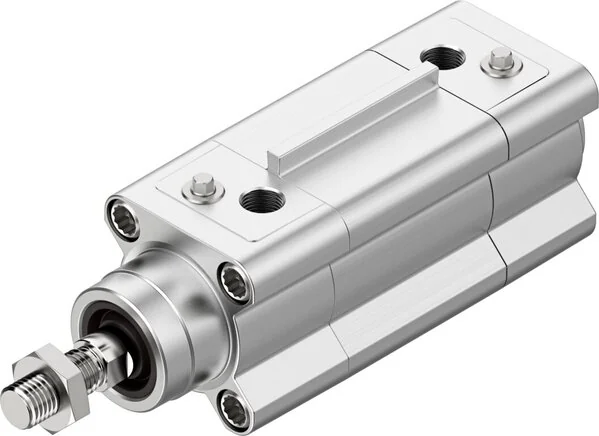

Festo - DSBF-C-50-80-PPVA-N3-R-1775261 - Standard Cylinder

SKU: festo-dsbf-c-50-80-ppva-n3-r-1775261

Browse all parts
Festo - DSBF-C-50-80-PPVA-N3-R-1775261 - Standard Cylinder

€298.78€255.37 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€298.78

Brand
Festo
Dampening
pneumatische Dämpfung beidseitig einstellbar
Stroke (mm)
80
Nut Material
High-alloyed stainless steels
Material Note
RoHs compliant
Cover Material
Aluminium-Druckguss, beschichtet
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
50
Moving Mass (g)
563
Piston Material
Aluminium wrought alloy
Bearing Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M16x1,5
Position Detection
For proximity switch
Construction Set Up
Profilrohr
Piston Rod Material
High-alloyed stainless steels
Buffer Seal Material
TPE-U(PU)
Complies To Standard
ISO 15552
Pneumatic Connection
G1/4
Dampening Length (mm)
22
Installation Position
arbitrary
Cylinder Tube Material
Aluminium-Knetlegierung, eloxiert
LABS (PWIS) Conformity
VDMA24364-B2-L
Material - Piston Seal
TPE-U(PU)
Material Collar Screws
Zinc plated steel
Principle Of Operation
double acting
Operating Pressure (MPa)
0,04 to 1,2
Ambient Temperature (°C)
80
Material Piston Rod Wiper
TPE-U(PU)
Material Of Cushioning Boss
POM
Base Weight At 0 mm Stroke (g)
1241
Corrosion Resistance Class KBK
3 - severe corrosion stress
Moving Mass At 0 mm Stroke (g)
363
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
1
Weight Supplement Per 10 mm Stroke (g)
58
Supplement Moved Mass Per 10 mm Stroke (g)
25
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
990
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
1178
EAN
4052568247034
Manufacturer
Festo
