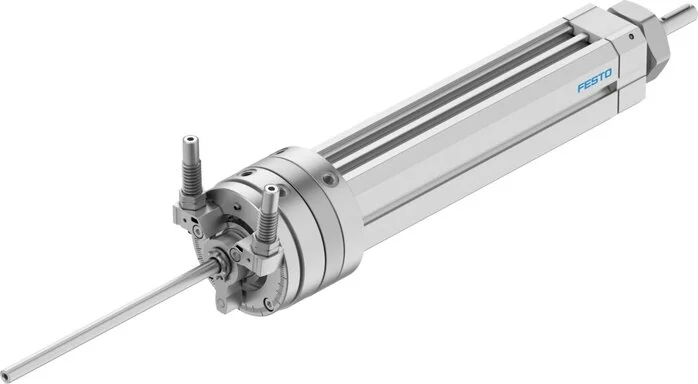

Festo - DSL-16-100-270-CC-A-S20-B-556418 - Swivel Linear Unit

€1,805.67€1,543.31 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,805.67

Brand
Festo
Variants
Continuously hollow piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
100
Cover Material
eloxiert
Fastening Type
with male thread
Piston Ø (mm)
16
Seals Material
TPE-U(PU)
Housing Material
gleiteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Impact Speed
0,5
Swivel Angle (°)
0 to 246
Position Detection
For proximity switch
Repeatability (°)
0,1
Construction Set Up
Rotary vane
Piston Rod Material
Quenched and tempered steel
Dampening Angle (°)
15
Fine Adjustment (°)
-3
Pneumatic Connection
M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Swivel Angle Play (°)
2,00
Anti-twist Lock / Guide
Slide guided
Dynamic Load Torque (Nm)
0,1
Operating Pressure (bar)
2.5 to 8
Ambient Temperature (°C)
-10 to 60
Base Weight At 0 mm Stroke (g)
700
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Mass Moment Of Inertia
0,0007
Settings Range Swivel Angle (°)
0 to 246
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Weight Supplement Per 10 mm Stroke (g)
33
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
1,25
Max. Swivel Frequency At 0.6 MPa (6 bar, 87 psi) (Hz)
1,5
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
73,5
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
102,5
EAN
4052568200442
Manufacturer
Festo
