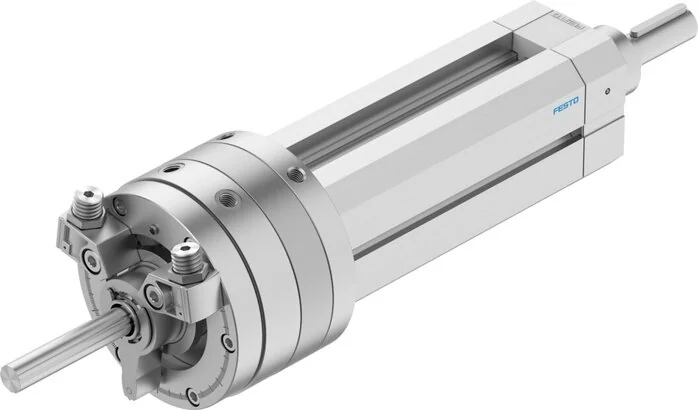

Festo - DSL-40-50-270-P-A-S2-KF-B-556738 - Swivel Linear Unit

SKU: festo-dsl-40-50-270-p-a-s2-kf-b-556738

Browse all parts
Festo - DSL-40-50-270-P-A-S2-KF-B-556738 - Swivel Linear Unit

€3,265.93€2,791.39 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,265.93

Brand
Festo
Variants
continuous piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
50
Cover Material
eloxiert
Fastening Type
with male thread
Piston Ø (mm)
40
Seals Material
TPE-U(PU)
Housing Material
gleiteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Impact Speed
0,5
Swivel Angle (°)
0 to 272
Position Detection
For proximity switch
Repeatability (°)
1,0
Construction Set Up
Rotary vane
Piston Rod Material
Quenched and tempered steel
Fine Adjustment (°)
-6
Pneumatic Connection
G1/8
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Swivel Angle Play (°)
0,05
Anti-twist Lock / Guide
Ball guided
Dynamic Load Torque (Nm)
5,4
Operating Pressure (bar)
2.5 to 8
Ambient Temperature (°C)
-10 to 60
Base Weight At 0 mm Stroke (g)
5200
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Mass Moment Of Inertia
0,00024
Settings Range Swivel Angle (°)
0 to 270
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Weight Supplement Per 10 mm Stroke (g)
175
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
20
Max. Swivel Frequency At 0.6 MPa (6 bar, 87 psi) (Hz)
2,0
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
495
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
603
EAN
4052568202217
Manufacturer
Festo
