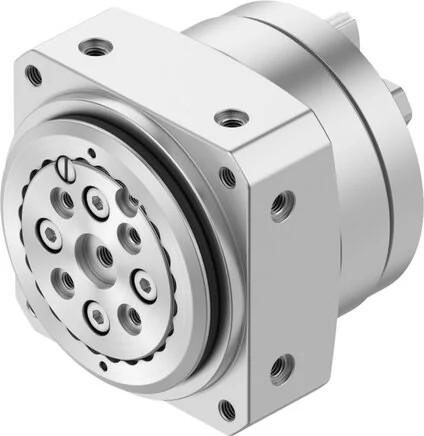

Festo - DSM-16-270-HD-A-B-1369111 - Swivel Drive

SKU: festo-dsm-16-270-hd-a-b-1369111

Browse all parts
Festo - DSM-16-270-HD-A-B-1369111 - Swivel Drive

€827.34€707.13 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€827.34

Brand
Festo
Size
16
Material Note
RoHs compliant
Fastening Type
with female thread
Seals Material
TPE-U(PU)
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Swivel Angle (°)
0 to 270
Position Detection
without
Construction Set Up
Rotary vane
Drive Shaft Material
nickel-plated
Max. Axial Force (N)
290
Pneumatic Connection
M5
Installation Position
arbitrary
Max. Impact Force (N)
160
Max. Radial Force (N)
300
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,3 to 1
Ambient Temperature (°C)
-10 to 60
Permissible Stop Radius (mm)
17
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
2,5
Max. Swivel Frequency At 0.6 MPa (6 bar, 87 psi) (Hz)
1,5
EAN
4052568231156
Manufacturer
Festo
