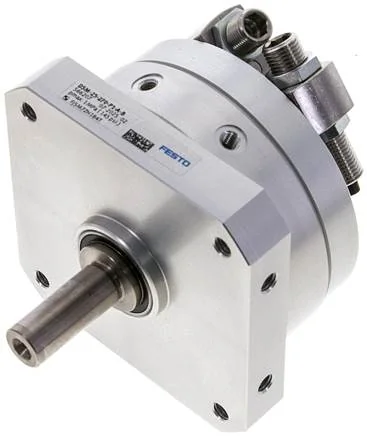

Festo - DSM-25-270-P1-A-B-566207 - Swivel Drive

SKU: festo-dsm-25-270-p1-a-b-566207

Browse all parts
Festo - DSM-25-270-P1-A-B-566207 - Swivel Drive

€487.12€416.34 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€487.12

Brand
Festo
Size
25
Dampening
elastische Dämpfungsringe/-platten beidseitig mit Festanschlag
Material Note
RoHs compliant
Fastening Type
with female thread
Seals Material
TPE-U(PU)
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Swivel Angle (°)
0 to 246
Position Detection
For proximity switch
Repeatability (°)
0,1
Construction Set Up
Rotary vane
Dampening Angle (°)
7,5
Drive Shaft Material
nickel-plated
Fine Adjustment (°)
-6
Max. Axial Force (N)
50
Pneumatic Connection
M5
Installation Position
arbitrary
Max. Impact Force (N)
320
Max. Radial Force (N)
120
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,15 to 1
Ambient Temperature (°C)
-10 to 60
Permissible Stop Radius (mm)
21
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Mass Moment Of Inertia
0,045
Settings Range Swivel Angle (°)
0 to 246
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
5
Max. Swivel Frequency At 0.6 MPa (6 bar, 87 psi) (Hz)
2,0
EAN
4052568213466
Manufacturer
Festo
