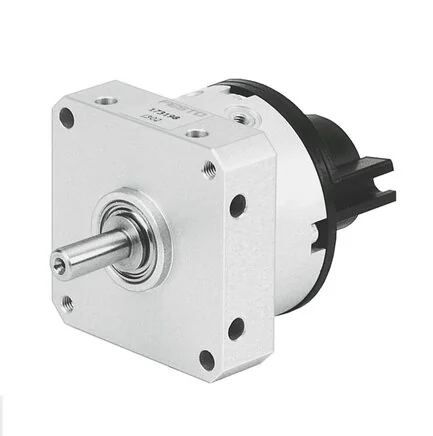

Festo - DSM-8-180-P-A-173198 - Swivel Drive

SKU: festo-dsm-8-180-p-a-173198

Browse all parts
Festo - DSM-8-180-P-A-173198 - Swivel Drive

€375.94€321.32 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€375.94

Brand
Festo
Size
8
Dampening
elastische Dämpfungsringe/-platten beidseitig
Material Note
RoHs compliant
Fastening Type
with female thread
Seals Material
TPE-U(PU)
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Swivel Angle (°)
0 to 180
Position Detection
For proximity switch
Repeatability (°)
1,0
Construction Set Up
Rotary vane
Dampening Angle (°)
0,5
Drive Shaft Material
High-alloyed stainless steels
Max. Axial Force (N)
10
Pneumatic Connection
M3
Installation Position
arbitrary
Max. Impact Force (N)
30
Max. Radial Force (N)
20
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,35 to 0,8
Ambient Temperature (°C)
60
Permissible Stop Radius (mm)
10
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Mass Moment Of Inertia
0,0013
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
0,35
Max. Swivel Frequency At 0.6 MPa (6 bar, 87 psi) (Hz)
3,0
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568004804
Manufacturer
Festo
