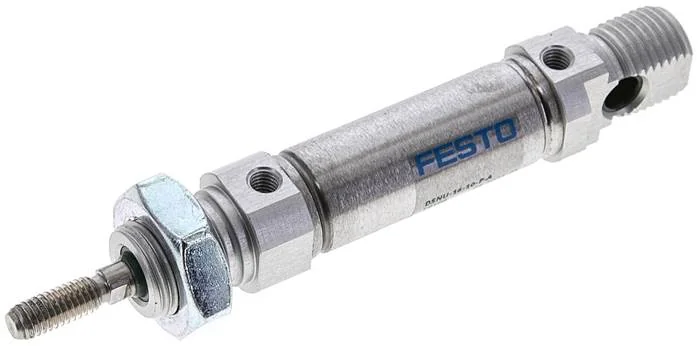

Festo - DSNU-16-10-P-A-19198 - Standard Cylinder

SKU: festo-dsnu-16-10-p-a-19198

Browse all parts
Festo - DSNU-16-10-P-A-19198 - Standard Cylinder

€74.35€63.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€74.35

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
10
Material Note
RoHs compliant
Cover Material
farblos eloxiert
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
16
Seals Material
TPE-U(PU)
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M6
Position Detection
For proximity switch
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed stainless steels
Complies To Standard
ISO 6432
Pneumatic Connection
M5
Installation Position
arbitrary
Cylinder Tube Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
80
Base Weight At 0 mm Stroke (g)
89,9
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
23
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,15
Supplement Moved Mass Per 10 mm Stroke (g)
2
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
103,7
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
120,6
EAN
4052568003104
Manufacturer
Festo
