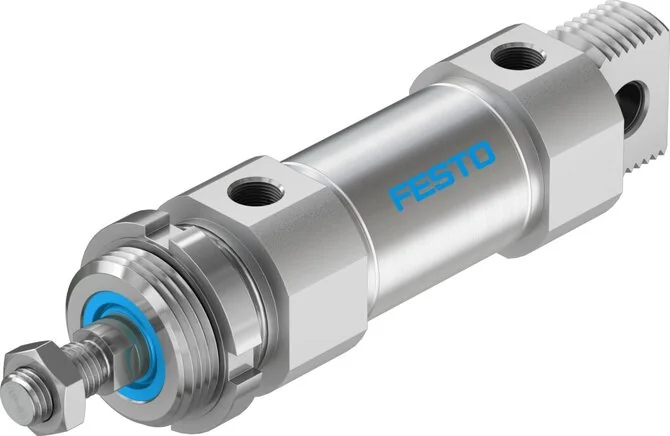

Festo - DSNU-40-10-P-A-5262529 - Round Cylinder

SKU: festo-dsnu-40-10-p-a-5262529

Browse all parts
Festo - DSNU-40-10-P-A-5262529 - Round Cylinder

€124.46€106.38 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€124.46

Brand
Festo
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
10
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With Accessories
Piston Ø (mm)
40
Seals Material
TPE-U(PU)
Moving Mass (g)
246
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M12x1,25
Position Detection
For proximity switch
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed steel
Pneumatic Connection
G1/4
Installation Position
arbitrary
Cylinder Tube Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,7
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
633,3
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
752,9
EAN
4052568422219
Manufacturer
Festo
