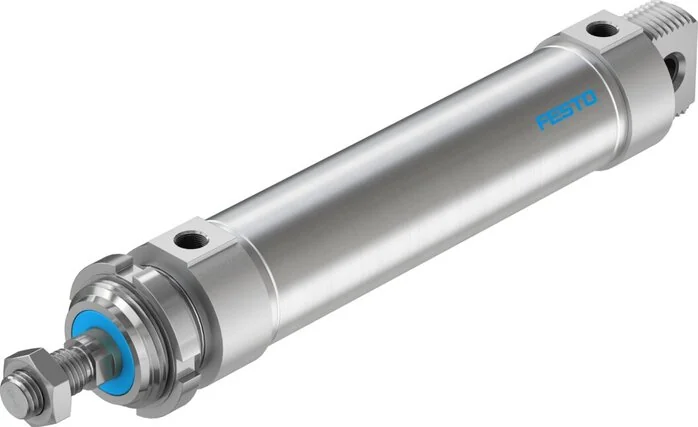

Festo - DSNU-50-160-PPS-A-559321 - Round Cylinder

SKU: festo-dsnu-50-160-pps-a-559321

Browse all parts
Festo - DSNU-50-160-PPS-A-559321 - Round Cylinder

€178.46€152.53 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€178.46

Brand
Festo
Dampening
selbsteinstellende pneumatische Endlagendämpfung
Stroke (mm)
160
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With Accessories
Piston Ø (mm)
50
Seals Material
TPE-U(PU)
Moving Mass (g)
813
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M16x1,5
Position Detection
For proximity switch
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed steel
Pneumatic Connection
G1/4
Dampening Length (mm)
20
Installation Position
arbitrary
Cylinder Tube Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
989,6
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
1178,1
EAN
4052568205973
Manufacturer
Festo
