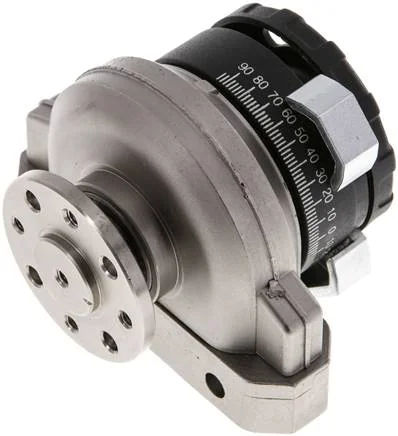

Festo - DSRL-12-180-P-FW-30654 - Swivel Drive

SKU: festo-dsrl-12-180-p-fw-30654

Browse all parts
Festo - DSRL-12-180-P-FW-30654 - Swivel Drive

€516.61€441.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€516.61

Brand
Festo
Size
12
Dampening
elastische Dämpfungsringe/-platten beidseitig
Cover Material
PA reinforced
Fastening Type
With throughway bores
Seals Material
NBR
Housing Material
Zinc pressure cast
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Swivel Angle (°)
0 to 180
Position Detection
without
Construction Set Up
Rotary vane
Dampening Angle (°)
2,2
Drive Shaft Material
nickel-plated
Max. Axial Force (N)
18
Pneumatic Connection
M5
Installation Position
arbitrary
Max. Radial Force (N)
45
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (bar)
2 to 8
Ambient Temperature (°C)
-10 to 60
Settings Range Swivel Angle (°)
0 to 180
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
1
Max. Swivel Frequency At 0.6 MPa (6 bar, 87 psi) (Hz)
3
EAN
4052568114060
Manufacturer
Festo
