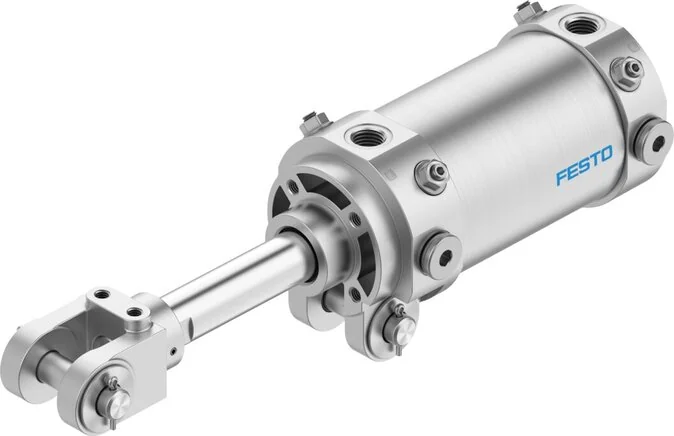

Festo - DWB-63-50-Y-AB-G-565772 - Articulated Cylinder

SKU: festo-dwb-63-50-y-ab-g-565772

Browse all parts
Festo - DWB-63-50-Y-AB-G-565772 - Articulated Cylinder

€221.40€189.23 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€221.40

Brand
Festo
Dampening
pneumatische Dämpfung beidseitig einstellbar
Stroke (mm)
50
Material Note
RoHs compliant
Cover Material
eloxiert
Fastening Type
With Accessories
Piston Rod End
Außengewinde mit Gabelkopf
Piston Ø (mm)
63
Seals Material
NBR
Wiper Material
Bronze
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Speed Regulation
integrierte Drosseln beidseitig
Piston Rod Thread
M16x1,5
Position Detection
For proximity switch
Construction Set Up
Zylinderrohr
Material Rod Clevis
Quenched and tempered steel
Piston Rod Material
hartverchromt
Pneumatic Connection
G1/4
Dampening Length (mm)
20
Installation Position
arbitrary
Cylinder Tube Material
eloxiert
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (bar)
1 to 10
Ambient Temperature (°C)
-10 to 60
Base Weight At 0 mm Stroke (g)
1600
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
741
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Broad Rod Clevis/swivel Mounting (mm)
19,5
Impact Energy At The End Positions (J)
1,3
Weight Supplement Per 10 mm Stroke (g)
42
Supplement Moved Mass Per 10 mm Stroke (g)
25
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
1682
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
1870
EAN
4052568213152
Manufacturer
Festo
