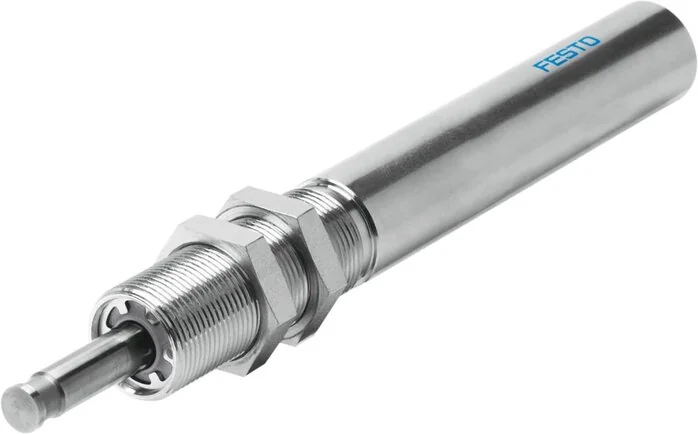

Festo - DYHR-16-40-Y5-1155691 - Oil Brake Cylinder

SKU: festo-dyhr-16-40-y5-1155691

Browse all parts
Festo - DYHR-16-40-Y5-1155691 - Oil Brake Cylinder

€495.58€423.57 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€495.58

Brand
Festo
Size
16
Dampening
adjustable
Feed Speed
0.2 to 100
Stroke (mm)
40
Material Note
RoHs compliant
Fastening Type
With locking nut
Seals Material
NBR
Reset Force (N)
5,4
Housing Material
verzinkt
Position Detection
without
Max. Feed Force (N)
1.600
Min. Feed Force (N)
160
Piston Rod Material
High-alloyed steel
Installation Position
arbitrary
Max. Impact Force (N)
1.600
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
single action
Max. Impact Speed (m/s)
0,3
Max. Residual Energy (J)
0,16
Ambient Temperature (°C)
0 to 80
Corrosion Resistance Class KBK
1 - low corrosion stress
Reset Time At Room Temperature (s)
0,8
Max. Energy Consumption Per Hour (J)
100.000
Max. Energy Consumption Per Stroke (J)
64,0
EAN
4052568227791
Manufacturer
Festo
