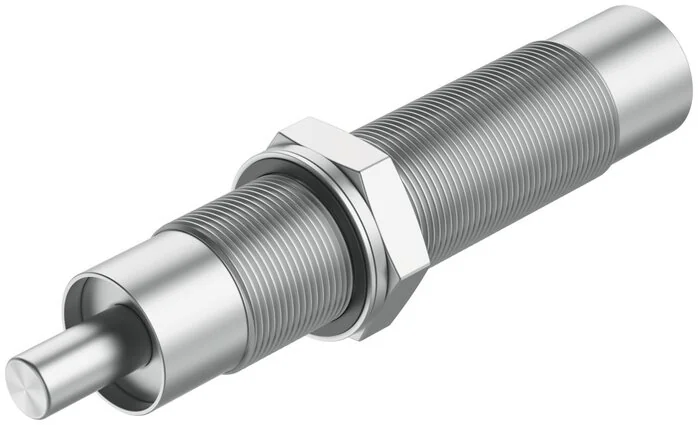

Festo - DYSD-Q11-12-12-Y1F-S-Y14-8161527 - Shock Absorber

SKU: festo-dysd-q11-12-12-y1f-s-y14-8161527

Browse all parts
Festo - DYSD-Q11-12-12-Y1F-S-Y14-8161527 - Shock Absorber

€265.71€227.10 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€265.71

Brand
Festo
Size
12
Dampening
self-adjusting
Stroke (mm)
12
Nut Material
Zinc-plated steel
Material Note
RoHs compliant
Fastening Type
With locking nut
Seals Material
NBR
Reset Force (N)
28
Housing Material
Zinc plated steel
Position Detection
without
Piston Rod Material
High-alloyed steel
Dampening Length (mm)
12
Installation Position
arbitrary
Max. Impact Force (N)
1.000
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
single action
Max. Impact Speed (m/s)
1,0
Max. Residual Energy (J)
0,05
Min. Insertion Force (N)
100
Ambient Temperature (°C)
0 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Reset Time At Room Temperature (s)
0,2
Max. Energy Consumption Per Hour (J)
36.000
Max. Energy Consumption Per Stroke (J)
8,0
EAN
4052568597351
Manufacturer
Festo
