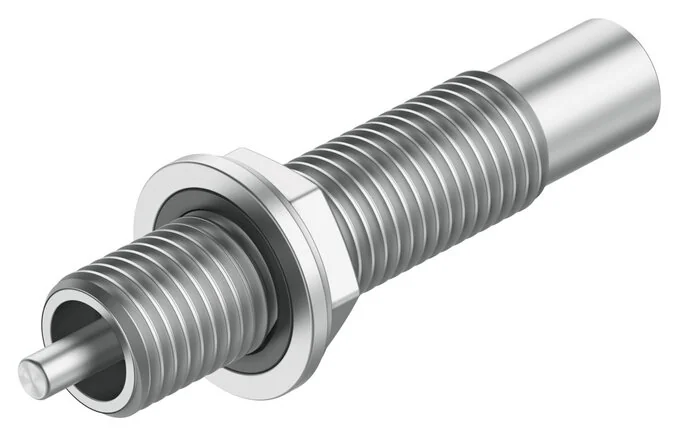

Festo - DYSD-Q11-7-5-Y1F-Y14-8161522 - Shock Absorber

SKU: festo-dysd-q11-7-5-y1f-y14-8161522

Browse all parts
Festo - DYSD-Q11-7-5-Y1F-Y14-8161522 - Shock Absorber

€193.88€165.71 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€193.88

Brand
Festo
Size
7
Dampening
self-adjusting
Stroke (mm)
5
Nut Material
Zinc-plated steel
Material Note
RoHs compliant
Fastening Type
With locking nut
Seals Material
NBR
Reset Force (N)
12
Housing Material
High-alloyed steel
Position Detection
without
Piston Rod Material
High-alloyed steel
Dampening Length (mm)
5
Installation Position
arbitrary
Max. Impact Force (N)
300
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
single action
Max. Impact Speed (m/s)
1,0
Max. Residual Energy (J)
0,01
Min. Insertion Force (N)
40
Ambient Temperature (°C)
0 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Reset Time At Room Temperature (s)
0,2
Max. Energy Consumption Per Hour (J)
12.000
Max. Energy Consumption Per Stroke (J)
4,0
EAN
4052568597306
Manufacturer
Festo
