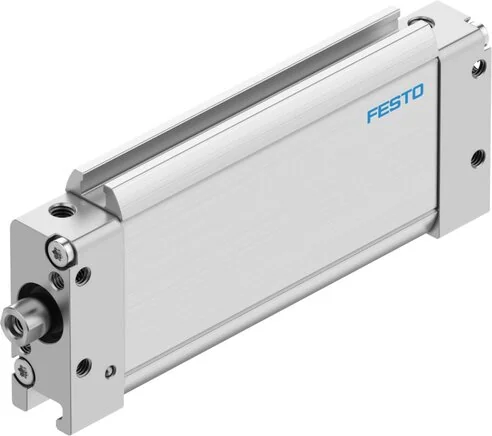

Festo - DZF-18-50-P-A-164018 - Flat Cylinder

SKU: festo-dzf-18-50-p-a-164018

Browse all parts
Festo - DZF-18-50-P-A-164018 - Flat Cylinder

€240.29€205.38 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€240.29

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Piston Ø
äquivalenter Durchmesser
Stroke (mm)
50
Cover Material
Aluminium wrought alloy
Fastening Type
With Accessories
Seals Material
TPE-U(PU)
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M4
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material - Piston Seal
NBR
Principle Of Operation
double acting
Anti-twist Lock / Guide
Oval piston
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 80
Base Weight At 0 mm Stroke (g)
107
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
24
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,1
Weight Supplement Per 10 mm Stroke (g)
13
Max. Torque Of Anti-rotation Safety (Nm)
0,2
Max. Twist Angle Of The Piston Rod ± (°)
1,2
Supplement Moved Mass Per 10 mm Stroke (g)
4
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
123
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
153
EAN
4052568136314
Manufacturer
Festo
