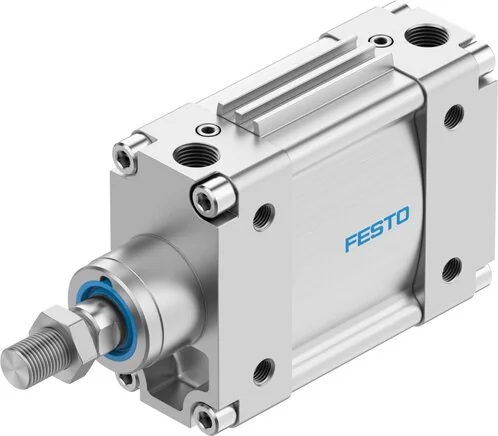

Festo - DZH-63-25-PPV-A-14074 - Flat Cylinder

SKU: festo-dzh-63-25-ppv-a-14074

Browse all parts
Festo - DZH-63-25-PPV-A-14074 - Flat Cylinder

€556.88€475.97 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€556.88

Brand
Festo
Variants
One-sided piston rod
Dampening
pneumatische Dämpfung beidseitig einstellbar
Piston Ø
äquivalenter Durchmesser
Stroke (mm)
25
Material Note
RoHs compliant
Cover Material
Aluminium
Fastening Type
With Accessories
Seals Material
TPE-U(PU)
Moving Mass (g)
625
Housing Material
Aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M16x1,5
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed steel
Pneumatic Connection
G3/8
Dampening Length (mm)
23
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Material - Piston Seal
TPE-U(PU)
Principle Of Operation
double acting
Anti-twist Lock / Guide
Oval piston
Operating Pressure (MPa)
0,06 to 1
Ambient Temperature (°C)
-20 to 80
Base Weight At 0 mm Stroke (g)
1820
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Weight Supplement Per 10 mm Stroke (g)
69,6
Max. Torque Of Anti-rotation Safety (Nm)
2
Max. Twist Angle Of The Piston Rod ± (°)
0,67
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
1682
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
1870
EAN
4052568112387
Manufacturer
Festo
