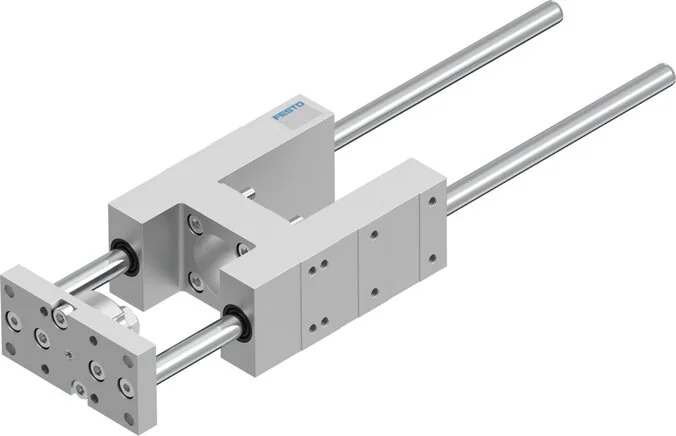

Festo - EAGF-V2-KF-32-200-2782818 - Guide Unit

SKU: festo-eagf-v2-kf-32-200-2782818

Festo - EAGF-V2-KF-32-200-2782818 - Guide Unit

€711.68€608.27 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€711.68

Brand
Festo
Size
32
Guide
ball guide
Stroke (mm)
200
Material Note
RoHs compliant
Fastening Type
with female thread
Reversing Play
0
Moving Mass (g)
1084
Housing Material
eloxiert
Max. Force Fy (N)
750
Max. Force Fz (N)
750
Pushing Force (N)
15
Construction Set Up
Guide
Max. Torque Mx (Nm)
28
Max. Torque My (Nm)
34
Max. Torque Mz (Nm)
34
Yoke Plate Material
Steel
Installation Position
arbitrary
Guide Element Material
Quenched and tempered steel
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Force Fy Static (N)
1.020
Max. Force Fz Static (N)
1.020
Ambient Temperature (°C)
-20 to 80
Max. Torque Mx Static (Nm)
38
Max. Torque My Static (Nm)
46
Max. Torque Mz Static (Nm)
46
Corrosion Resistance Class KBK
0 - No corrosion stressing
Centre Of Mass Of The Moved Mass At 0 Stroke (mm)
30
Supplement Centre Of Mass Of The Moved Mass Per 10 Stroke (mm)
4,1
EAN
4052568266196
Manufacturer
Festo
