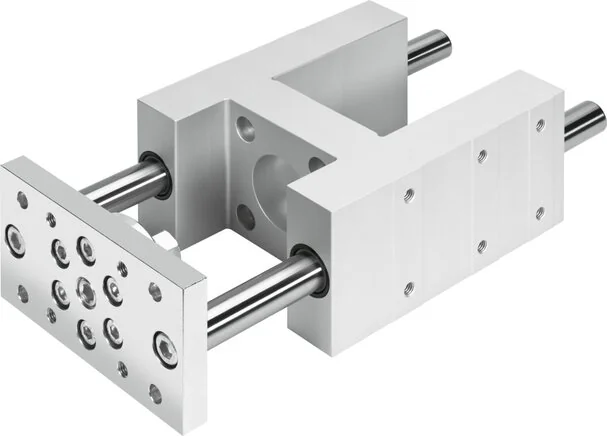

Festo - EAGF-V2-KF-80-100-1725846 - Guide Unit

SKU: festo-eagf-v2-kf-80-100-1725846

Festo - EAGF-V2-KF-80-100-1725846 - Guide Unit

€1,796.41€1,535.39 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,796.41

Brand
Festo
Size
80
Guide
ball guide
Stroke (mm)
100
Material Note
RoHs compliant
Fastening Type
with female thread
Reversing Play
0
Moving Mass (g)
5910
Housing Material
eloxiert
Max. Force Fy (N)
2300
Max. Force Fz (N)
2300
Pushing Force (N)
40
Construction Set Up
Guide
Max. Torque Mx (Nm)
170
Max. Torque My (Nm)
191
Max. Torque Mz (Nm)
191
Yoke Plate Material
Steel
Installation Position
arbitrary
Guide Element Material
Quenched and tempered steel
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Force Fy Static (N)
3.120
Max. Force Fz Static (N)
3.120
Ambient Temperature (°C)
-20 to 80
Max. Torque Mx Static (Nm)
231
Max. Torque My Static (Nm)
259
Max. Torque Mz Static (Nm)
259
Corrosion Resistance Class KBK
0 - No corrosion stressing
Centre Of Mass Of The Moved Mass At 0 Stroke (mm)
54
Supplement Centre Of Mass Of The Moved Mass Per 10 Stroke (mm)
3,8
EAN
4052568246235
Manufacturer
Festo
