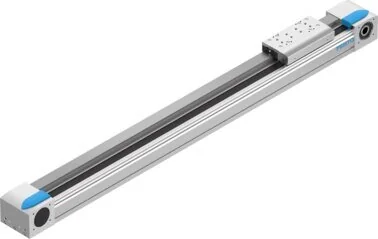

Festo - EGC-120-1000-TB-KF-0H-GK-3013368 - Toothed Belt Axis

SKU: festo-egc-120-1000-tb-kf-0h-gk-3013368

Browse all parts
Festo - EGC-120-1000-TB-KF-0H-GK-3013368 - Toothed Belt Axis

€3,469.45€2,965.34 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,469.45

Brand
Festo
Size
120
Guide
ball guide
Motor Type
Servo motor
Feed Constant
125
Material Note
RoHs compliant
Power-on Time
100%
V-belt Material
Polychloroprene oder Nitrilkautschuk (NBR) mit Glascord und Nylonüberzug
Max. Speed (m/s)
5
Profile Material
eloxiert
Carriage Material
eloxiert
Max. Acceleration
50
Max. Force Fy (N)
6890
Max. Force Fz (N)
6890
Repeatability (mm)
±0.08
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
144
Max. Torque My (Nm)
380
Max. Torque Mz (Nm)
380
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
1000
Belt Pulley Material
High-alloyed stainless steels
Installation Position
arbitrary
Closing Cover Material
eloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
800
V-belt Separation (mm)
5
Actuator Cover Material
eloxiert
Guide Carriage Material
Steel
Second Moment Of Area Iy
4.620.000
Second Moment Of Area Iz
5.650.000
Ambient Temperature (°C)
-10 to 60
Reference Service Life (km)
5000
Max. Force Fy Total Axis (N)
6890
Max. Force Fz Total Axis (N)
6890
V-belt Clamping Body Material
Cast stainless steel
Max. Moment Mx Total Axis (Nm)
144
Max. Moment My Total Axis (Nm)
380
Max. Moment Mz Total Axis (Nm)
380
Torsional Moment Of Inertia To
2.680.000
Mass Inertia JH Per Metre Stroke
0,93
Mass Inertia JL Per kg Usable Load
3,96
Max. Empty Run Shift Resistance (N)
70,0
Actuator Pinion Effective Diameter (mm)
39,79
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
25383
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
25383
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
531
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1400
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1400
EAN
4052568268251
Manufacturer
Festo
