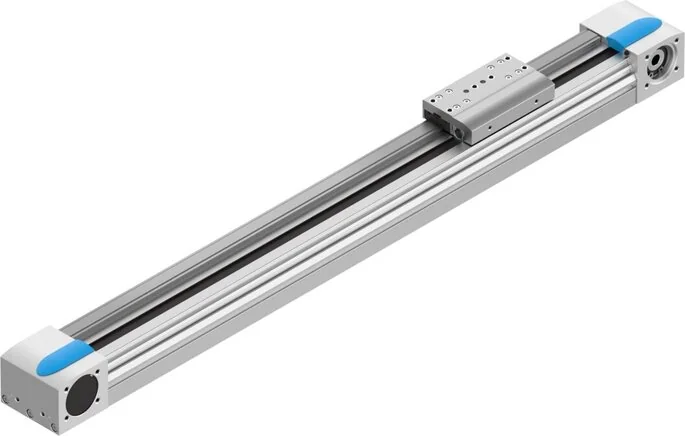

Festo - EGC-70-500-TB-KF-0H-GK-3012494 - Toothed Belt Axis

SKU: festo-egc-70-500-tb-kf-0h-gk-3012494

Festo - EGC-70-500-TB-KF-0H-GK-3012494 - Toothed Belt Axis

€1,835.32€1,568.65 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,835.32

Brand
Festo
Size
70
Guide
ball guide
Motor Type
Servo motor
Feed Constant
78
Material Note
RoHs compliant
Power-on Time
100%
V-belt Material
Polychloroprene oder Nitrilkautschuk (NBR) mit Glascord und Nylonüberzug
Max. Speed (m/s)
5
Profile Material
eloxiert
Carriage Material
eloxiert
Max. Acceleration
50
Max. Force Fy (N)
1850
Max. Force Fz (N)
1850
Repeatability (mm)
±0.08
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
16
Max. Torque My (Nm)
51
Max. Torque Mz (Nm)
51
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
500
Belt Pulley Material
High-alloyed stainless steels
Installation Position
arbitrary
Closing Cover Material
eloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
100
V-belt Separation (mm)
3
Actuator Cover Material
eloxiert
Guide Carriage Material
Steel
Second Moment Of Area Iy
395.000
Second Moment Of Area Iz
577.000
Ambient Temperature (°C)
-10 to 60
Reference Service Life (km)
5000
Max. Force Fy Total Axis (N)
1850
Max. Force Fz Total Axis (N)
1850
V-belt Clamping Body Material
nickel-plated
Max. Moment Mx Total Axis (Nm)
16
Max. Moment My Total Axis (Nm)
51
Max. Moment Mz Total Axis (Nm)
51
Torsional Moment Of Inertia To
240.000
Mass Inertia JH Per Metre Stroke
0,11
Mass Inertia JL Per kg Usable Load
1,54
Max. Empty Run Shift Resistance (N)
14,5
Actuator Pinion Effective Diameter (mm)
24,83
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
6842
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
6842
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
58,9
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
188
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
188
EAN
4052568268114
Manufacturer
Festo
