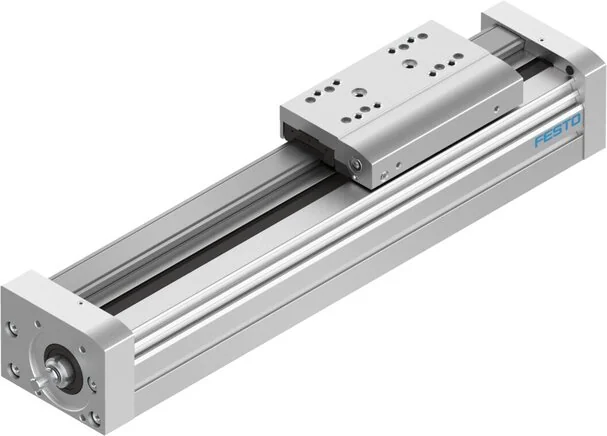

Festo - EGC-80-200-BS-20P-KF-0H-ML-GK-3013540 - Spindle Axis

SKU: festo-egc-80-200-bs-20p-kf-0h-ml-gk-3013540

Festo - EGC-80-200-BS-20P-KF-0H-ML-GK-3013540 - Spindle Axis

€2,320.85€1,983.63 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,320.85

Brand
Festo
Size
80
Guide
ball guide
Motor Type
Servo motor
Spindle Type
Ball screw
Feed Constant
20
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
20
Carrier Material
eloxiert
Max. Speed (m/s)
1
Profile Material
eloxiert
Spindle Material
Steel
Carriage Material
eloxiert
Max. Acceleration
15
Max. Force Fy (N)
3050
Max. Force Fz (N)
3050
Repeatability (mm)
±0.02
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
36
Max. Torque My (Nm)
97
Max. Torque Mz (Nm)
97
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
200
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
15
Closing Cover Material
eloxiert
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Feed Force Fx (N)
650
Actuator Cover Material
eloxiert
Guide Carriage Material
Steel
Second Moment Of Area Iy
981.000
Second Moment Of Area Iz
1.320.000
Ambient Temperature (°C)
-10 to 60
Reference Service Life (km)
5000
Max. Force Fy Total Axis (N)
3050
Max. Force Fz Total Axis (N)
3050
Max. Moment Mx Total Axis (Nm)
36
Max. Moment My Total Axis (Nm)
97
Max. Moment Mz Total Axis (Nm)
97
Torsional Moment Of Inertia To
255.000
Mass Inertia JH Per Metre Stroke
0,346
Max. Radial Force On Drive Shaft (N)
250
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
11236
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
11236
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
133
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
357
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
357
EAN
4052568268428
Manufacturer
Festo
