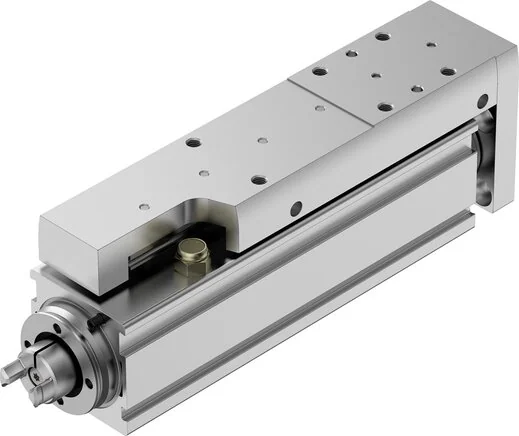

Festo - EGSC-BS-KF-25-50-6P-8048311 - Mini Slide

SKU: festo-egsc-bs-kf-25-50-6p-8048311

Festo - EGSC-BS-KF-25-50-6P-8048311 - Mini Slide

€840.27€718.18 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€840.27

Brand
Festo
Size
25
Guide
ball guide
Max. Speed
4000
Motor Type
Servo motor
Referencing
Reference switch
Spindle Type
Ball screw drive
Feed Constant
6
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
6
Fastening Type
mit Zylinderstift
Reversing Play
150
Mass Inertia JO
0,00144
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Speed (m/s)
0,4
Spindle Material
Roller bearing steel
Carriage Material
Aluminium-Knetlegierung, eloxiert
Max. Acceleration
15
Max. Force Fy (N)
669
Max. Force Fz (N)
669
Position Detection
For proximity switch
Repeatability (mm)
±0.015
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
2
Max. Torque My (Nm)
2,1
Max. Torque Mz (Nm)
2,1
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
50
Yoke Plate Material
Aluminium-Knetlegierung, eloxiert
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
6
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
20
Guide Carriage Material
Roller bearing steel
Interface Code Actuator
V20
Ambient Temperature (°C)
0 to 50
Reference Service Life (km)
5000
Sound Pressure Level (dB(A))
50
Base Weight At 0 mm Stroke (g)
176
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
83
Mass Inertia JH Per Metre Stroke
0,01507
Impact Energy At The End Positions
0,000005
Mass Inertia JL Per kg Usable Load
0,00912
Static Load Factor Linear Guide (N)
2.440
Dynamic Load Factor Linear Guide (N)
1.310
Max. Radial Force On Drive Shaft (N)
30
Static Load Factor Fixed Bearing (N)
1.340
Dynamic Load Factor Fixed Bearing (N)
2.810
Weight Supplement Per 10 mm Stroke (g)
19
Static Load Factor Ball Screw Drive (N)
2.600
Dynamic Load Factor Ball Screw Drive (N)
1.700
Supplement Moved Mass Per 10 mm Stroke (g)
9
Reference Value Effective Load, Vertical (kg)
2
Empty Run Torque At Maximum Movement Speed (Nm)
0,029
Empty Run Torque At Minimum Movement Speed (Nm)
0,015
Reference Value Effective Load, Horizontal (kg)
2
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 9 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
1310
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
1310
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
5
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
4
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
4
EAN
4052568295066
Manufacturer
Festo
