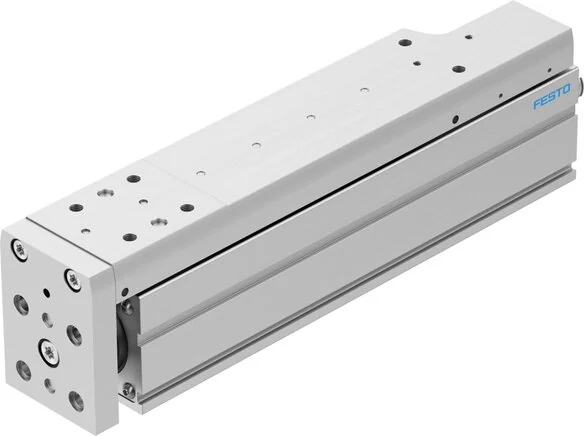

Referencing
Reference switch
Spindle Type
Ball screw drive
Material Note
RoHs compliant
Fastening Type
mit Zylinderstift
Housing Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Roller bearing steel
Carriage Material
Aluminium-Knetlegierung, eloxiert
Position Detection
For proximity switch
Construction Set Up
mit Kugelgewindetrieb
Piston Rod Material
High-alloyed stainless steels
Yoke Plate Material
Aluminium-Knetlegierung, eloxiert
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
120
Guide Carriage Material
Roller bearing steel
Interface Code Actuator
V32
Ambient Temperature (°C)
0 to 50
Reference Service Life (km)
5000
Sound Pressure Level (dB(A))
55
Base Weight At 0 mm Stroke (g)
608
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
212
Mass Inertia JH Per Metre Stroke
0,04918
Impact Energy At The End Positions
0,000014
Mass Inertia JL Per kg Usable Load
0,0028
Static Load Factor Linear Guide (N)
5.630
Dynamic Load Factor Linear Guide (N)
3.240
Max. Radial Force On Drive Shaft (N)
180
Static Load Factor Fixed Bearing (N)
3.966
Dynamic Load Factor Fixed Bearing (N)
7.413
Weight Supplement Per 10 mm Stroke (g)
63
Static Load Factor Ball Screw Drive (N)
6.300
Dynamic Load Factor Ball Screw Drive (N)
3.500
Supplement Moved Mass Per 10 mm Stroke (g)
30
Reference Value Effective Load, Vertical (kg)
12
Empty Run Torque At Maximum Movement Speed (Nm)
0,059
Empty Run Torque At Minimum Movement Speed (Nm)
0,015
Reference Value Effective Load, Horizontal (kg)
12
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 9 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
20
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
