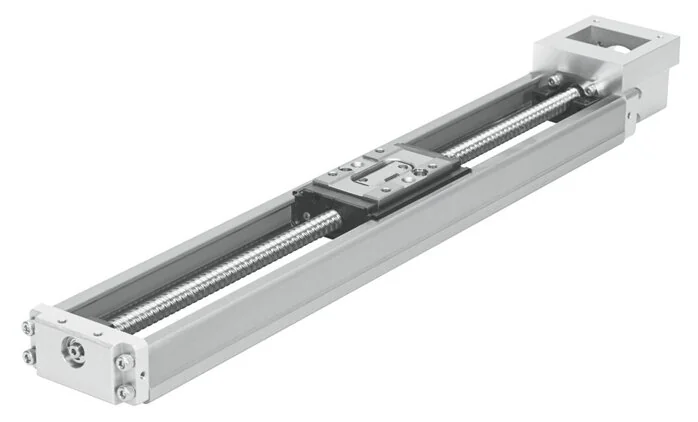

Festo - EGSK-26-50-2P-562764 - Electric Slide

SKU: festo-egsk-26-50-2p-562764

Festo - EGSK-26-50-2P-562764 - Electric Slide

€1,162.31€993.43 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,162.31

Brand
Festo
Size
26
Guide
ball guide
Referencing
Reference switch
Spindle Type
Ball screw drive
Feed Constant
2
Material Note
RoHs compliant
Spindle Pitch
2
Fastening Type
With Female thread and dowel pin
Reversing Play
20
Mass Inertia JO
0,00357
Moving Mass (g)
153
Max. Speed (m/s)
0,28
Profile Material
High-alloyed stainless steels
Spindle Material
Steel
Carriage Material
Steel
Max. Acceleration
10
Max. Force Fy (N)
2223
Max. Force Fz (N)
2223
Repeatability (mm)
±0.01
Carriage Weight (g)
153
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
37,8
Max. Torque My (Nm)
12,9
Max. Torque Mz (Nm)
12,9
Protection Category
IP10
Working Stroke (mm)
50
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
8
Closing Cover Material
beschichtet
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
116
Actuator Cover Material
beschichtet
Second Moment Of Area Iy
17.000
Second Moment Of Area Iz
150.000
Ambient Temperature (°C)
0 to 40
Max. Actuator Torque (Nm)
0,037
Reference Service Life (km)
1000
Additional Carriage Weight (g)
153
Base Weight At 0 mm Stroke (g)
780
Corrosion Resistance Class KBK
0 - No corrosion stressing
Empty Run Actuator Torque (Nm)
0,015
Mass Inertia JH Per Metre Stroke
0,0316
Static Load Factor Linear Guide (N)
12.150
Dynamic Load Factor Linear Guide (N)
5.746
Static Load Factor Fixed Bearing (N)
1.760
Dynamic Load Factor Fixed Bearing (N)
1.380
Weight Supplement Per 10 mm Stroke (g)
42
Static Load Factor Ball Screw Drive (N)
4.020
Dynamic Load Factor Ball Screw Drive (N)
2.350
EAN
4052568209728
Manufacturer
Festo
