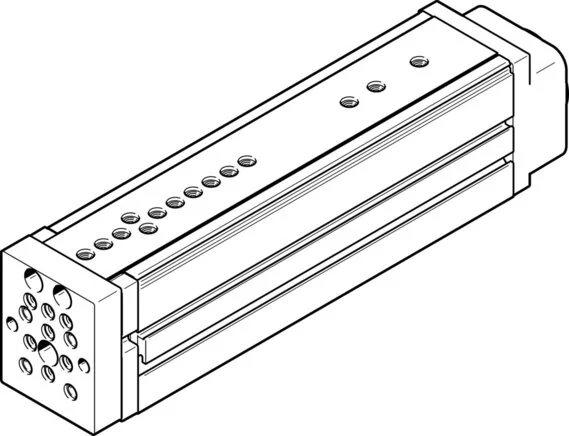

Festo - EGSL-BS-55-100-5P-562227 - Mini Slide

SKU: festo-egsl-bs-55-100-5p-562227

Festo - EGSL-BS-55-100-5P-562227 - Mini Slide

€2,298.22€1,964.29 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,298.22

Brand
Festo
Size
55
Guide
Ball cage guide
Motor Type
Servo motor
Spindle Type
Ball screw drive
Feed Constant
5
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
5
Cover Material
lackiert
Fastening Type
With Accessories
Reversing Play
50
Mass Inertia JO
0,1352
Moving Mass (g)
1070
Housing Material
eloxiert
Max. Speed (m/s)
0,4
Parallelity (mm)
0,050
Spindle Material
Roller bearing steel
Max. Acceleration
25
Max. Force Fy (N)
1047
Max. Force Fz (N)
1047
Position Detection
For proximity switch
Repeatability (mm)
±0.015
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
33,1
Max. Torque My (Nm)
31
Max. Torque Mz (Nm)
31
Protection Category
IP40
Working Stroke (mm)
100
Yoke Plate Material
eloxiert
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
12
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
300
Guide Carriage Material
Roller bearing steel
Ambient Temperature (°C)
0 to 60
Continuous Feed Force (N)
200
Max. Actuator Torque (Nm)
0,415
Sound Pressure Level (dB(A))
65
Corrosion Resistance Class KBK
0 - No corrosion stressing
Empty Run Actuator Torque (Nm)
0,15
Mass Inertia JL Per kg Usable Load
0,0063
Max. Radial Force On Drive Shaft (N)
260
Running Parallelity In Z-direction (mm)
0,04
Reference Value Effective Load, Vertical (kg)
10
Reference Value Effective Load, Horizontal (kg)
10
EAN
4052568209001
Manufacturer
Festo
