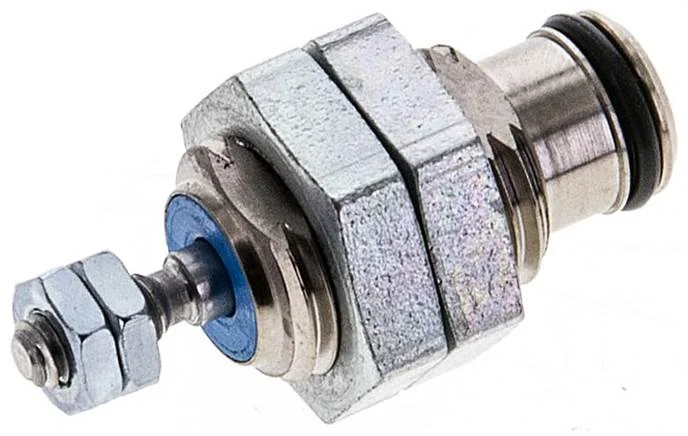

Festo - EGZ-6-5-15033 - Screw-in Cylinder

SKU: festo-egz-6-5-15033

Festo - EGZ-6-5-15033 - Screw-in Cylinder

€52.31€44.71 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€52.31

Brand
Festo
Variants
One-sided piston rod
Dampening
No dampening
Stroke (mm)
5
Cover Material
POM
Fastening Type
With locking nut
Piston Ø (mm)
6
Seals Material
TPE-U(PU)
Housing Material
nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Position Detection
without
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed steel
Pneumatic Connection
M3
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
single action
Operating Pressure (bar)
2 to 8
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Esteröl < 0,1mg/m³, nach ISO 8573-1:2010 [-:-:2]
Tightening Torque Of Drive Mounting (Nm)
8
Theoretical Force At 0.6 MPa (6 bar, 87 psi) (N)
14
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
14,7
EAN
4052568066604
Manufacturer
Festo
