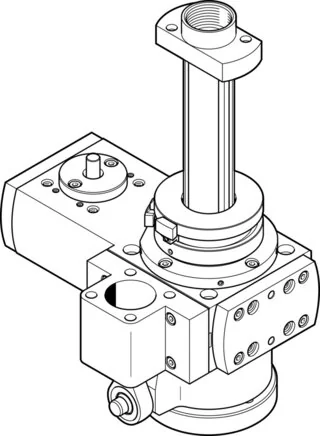

Festo - EHMB-25-100-1095933 - Rotary-Lift Module

SKU: festo-ehmb-25-100-1095933

Browse all parts
Festo - EHMB-25-100-1095933 - Rotary-Lift Module

€5,067.40€4,331.11 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€5,067.40

Brand
Festo
Size
25
Gear Type
V-belt gear
Gear Ratio
04:01
Mass Inertia
5000
Material Note
RoHs compliant
Repeatability
±0,03 °
Cover Material
eloxiert
Flange Material
Aluminium-Knetlegierung, eloxiert
Holder Material
Aluminium-Knetlegierung, eloxiert
Moving Mass (g)
1542
V-belt Material
Polychloroprene with glass fibre
Bracket Material
Aluminium-Knetlegierung, eloxiert
Housing Material
eloxiert
Max. Input Speed
1.200
Max. Speed (m/s)
1,5
Angle Of Rotation
Endless
Max. Output Speed
300
Position Detection
For inductive sensors
Construction Set Up
mit Zahnriemen
Working Stroke (mm)
0 to 100
Drive Shaft Material
High-alloyed stainless steels
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
480
V-belt Separation (mm)
3
Actuator Shaft Material
Steel
Max. Output Torque (Nm)
8,80
Ambient Temperature (°C)
-10 to 60
Max. Actuator Torque (Nm)
2,2
Drive Pinion Diameter (mm)
8
Sound Pressure Level (dB(A))
51
Empty Run Actuator Torque (Nm)
0,18
Reference Value Effective Load, Vertical (g)
5
Reference Value Effective Load, Horizontal (g)
5
EAN
4052568226824
Manufacturer
Festo
